create a database change log file

In liquibase , using many db change log file for maintaining db meta-data or structure , These db change log includes database operation of DDL , These db change log file would resides in resources directory , like below.

change log file

A change log file is a XML format file . The root element and xml schema is below:

<?xml version="1.0" encoding="UTF-8"?>
<databaseChangeLog
        xmlns="http://www.liquibase.org/xml/ns/dbchangelog"
        xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
        xsi:schemaLocation="http://www.liquibase.org/xml/ns/dbchangelog
         http://www.liquibase.org/xml/ns/dbchangelog/dbchangelog-3.1.xsd">

</databaseChangeLog>

When i want to create a new table named as TblLiquibaseTest , then i create a database change log xml file named as db.changelog.create.TblLiquibaseTest.xml placed into resources directory , The xml content is showing below:

<?xml version="1.0" encoding="UTF-8"?>
<databaseChangeLog
        xmlns="http://www.liquibase.org/xml/ns/dbchangelog"
        xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
        xsi:schemaLocation="http://www.liquibase.org/xml/ns/dbchangelog
         http://www.liquibase.org/xml/ns/dbchangelog/dbchangelog-3.1.xsd">

    <changeSet id="createtion-com.ai**ss.c**st.AppTest.LiquibaseTest" author="AndyLi">
        <createTable tableName="TblLiquibaseTest">
            <column name="testId" type="java.sql.Types.BIGINT">
                <constraints nullable="false" primaryKey="true"></constraints>
            </column>
            <column name="testName" type="java.sql.Types.VARCHAR(50)">
                <constraints nullable="true"></constraints>
            </column>
            <column name="createDate" type="java.sql.Types.TIMESTAMP"></column>
            <column name="status" type="java.sql.Types.CHAR(1)"></column>
        </createTable>
    </changeSet>


</databaseChangeLog>
  1. databaseChangeLog is the root element of database change log xml
  2. chanageSet is an operation of DDL
  3. changeSet.id changeSet.author is a unique identification using by liuqibase to identify which operation has been committed or not .

comprehensive file

In the same directory with db.changelog.create.TblLiquibaseTest.xml , i created comprehensive file db.changelog.TblLiquibaseTest.xml to include db.changelog.create.TblLiquibaseTest.xml in order to maintain familial change log file.


<?xml version="1.0" encoding="UTF-8"?>
<databaseChangeLog
        xmlns="http://www.liquibase.org/xml/ns/dbchangelog"
        xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
        xsi:schemaLocation="http://www.liquibase.org/xml/ns/dbchangelog
         http://www.liquibase.org/xml/ns/dbchangelog/dbchangelog-3.1.xsd">
    <include file="com/xx/xx/infrastructure/persistence/db.changelog.create.TblLiquibaseTest.xml"/>
</databaseChangeLog>

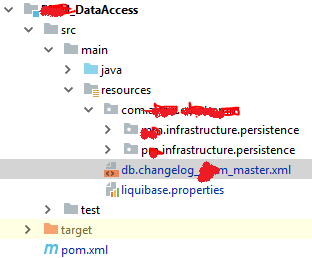

db.changelog_master.xml

Using db.change.master.xml to aggregated all change log files for liquibase to maintain database . Also the file should be placed in resources directory . The directory structure like below:

db.changelog_master.xml

The db.change.master.xml content contains many include elements to aggregate all change files , like this:

db.changelog.master.xml

Since i create the comprehensive file db.changelog.TblLiquibaseTest.xml for familial operation of table TblLiquibaseTest DDL , i must supplement below tag statement into db.change.master.xml


<include file="com/axxs/cxxst/pxm/xm/infrastructure/persistence/db.changelog.TblLiquibaseTest.xml"/>

liquibase.properties

Liquibase used properties file to configure running . A liquibase.properties should be placed in resources directory

liquibase.properties

The content of liquibase.properties

contexts=dbUt
changeLogFile=db.changelog_p**m_master.xml
driver: com.microsoft.sqlserver.jdbc.SQLServerDriver
url: jdbc:sqlserver://localhost:1433;DatabaseName=XXXPOC
username: sa
password: ***
verbose: true
dropFirst: false
outputChangeLogFile: db.changelog_pxx_ouput.xml
  1. dropFirst configure whether delete all table before running

liuqibase maven plugin

 <plugin>
   <groupId>org.liquibase</groupId>
   <artifactId>liquibase-maven-plugin</artifactId>
   <configuration>
        <propertyFileWillOverride>true</propertyFileWillOverride>
        <propertyFile>src/main/resources/liquibase.properties</propertyFile>
        <promptOnNonLocalDatabase>false</promptOnNonLocalDatabase>
        <executions>
              <execution>
                    <phase>process-resources</phase>
                    <goals>
                        <goal>updateSQL</goal>
                     </goals>
              </execution>
         </executions>
   </configuration>
</plugin>
  1. Because of using spring boot default liquibase version , i have no specified version of liquibase-maven-plugin plugin
  2. propertyFile specified the liquibase.properties location
  3. promptOnNonLocalDatabase is false will configure that not prompt confirm message when conecting to database

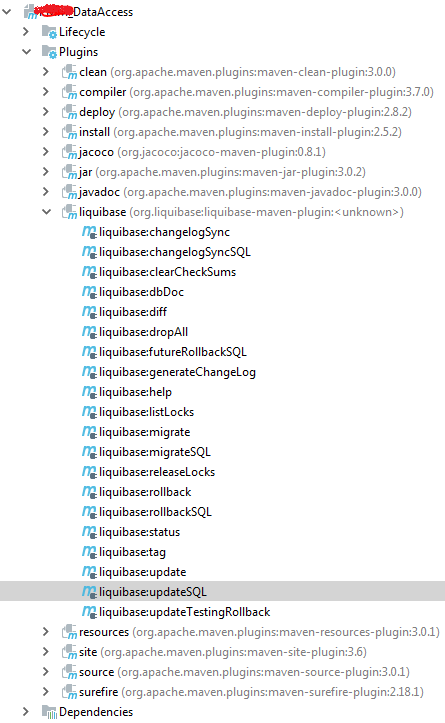

After configure maven plugin ,then you will see the plugin information in Maven Project view of iNTELLIj IDEA

maven plugin

  1. liquibase:update Run liquibase and applies the database change logs to the databalse direct. Useful as part of the build process.
  2. liquibase:updateSQL Generates the SQL that is required to update the database to the current version as spcified in the database change logs .

In real ,since i added db.changelog.create.TblLiquibaseTest.xml to project . but i do not want to applies the db.changelog.create.TblLiquibaseTest.xml to the database direct , i want to generate the SQL script for check and approval before database change log be applied. We can bundle plugin goal liquibase:updateSQL to maven phase like above configuration , and then we run command mvn package to generate the script .

For comparing , i has ran mvn package before i composed db.changelog.create.TblLiquibaseTest.xml to get the scirpt in the case of no change of database. So i got the scirpt below in the directory target\liquibase\migrate.sql :

-- *********************************************************************
-- Update Database Script
-- *********************************************************************
-- Change Log: db.changelog_p*m_master.xml
-- Ran at: 8/16/18 10:23 AM
-- Against: sa@jdbc:sqlserver://CANW***3X:1433;authenticationScheme=nativeAuthentication;xopenStates=false;sendTimeAsDatetime=true;trustServerCertificate=false;sendStringParametersAsUnicode=true;selectMethod=direct;responseBuffering=adaptive;packetSize=8000;multiSubnetFailover=false;loginTimeout=15;lockTimeout=-1;lastUpdateCount=true;encrypt=false;disableStatementPooling=true;databaseName=C**TPOC;applicationName=Microsoft JDBC Driver for SQL Server;applicationIntent=readwrite;
-- Liquibase version: 3.6.1
-- *********************************************************************

USE C**TPOC;
GO

-- Lock Database
UPDATE DATABASECHANGELOGLOCK SET LOCKED = 1, LOCKEDBY = 'CAxxxR43X (10.xx.xx.100)', LOCKGRANTED = '2018-08-16T10:23:59.369' WHERE ID = 1 AND LOCKED = 0
GO

-- Release Database Lock
UPDATE DATABASECHANGELOGLOCK SET LOCKED = 0, LOCKEDBY = NULL, LOCKGRANTED = NULL WHERE ID = 1
GO

The script show that have nothing to do

Then i ran again after i composed the db.changelog.create.TblLiquibaseTest.xml , I got the script in the same directory.

-- *********************************************************************
-- Update Database Script
-- *********************************************************************
-- Change Log: db.changelog_p*m_master.xml
-- Ran at: 8/16/18 4:23 PM
-- Against: sa@jdbc:sqlserver://CANW**X:1433;authenticationScheme=nativeAuthentication;xopenStates=false;sendTimeAsDatetime=true;trustServerCertificate=false;sendStringParametersAsUnicode=true;selectMethod=direct;responseBuffering=adaptive;packetSize=8000;multiSubnetFailover=false;loginTimeout=15;lockTimeout=-1;lastUpdateCount=true;encrypt=false;disableStatementPooling=true;databaseName=C**TPOC;applicationName=Microsoft JDBC Driver for SQL Server;applicationIntent=readwrite;
-- Liquibase version: 3.6.1
-- *********************************************************************

USE C**TPOC;
GO

-- Lock Database
UPDATE DATABASECHANGELOGLOCK SET LOCKED = 1, LOCKEDBY = 'CANWKD3**3X (10.*.*.100)', LOCKGRANTED = '2018-08-16T16:23:58.314' WHERE ID = 1 AND LOCKED = 0
GO

-- Changeset com/a***s/co**t/p*m/*m/infrastructure/persistence/db.changelog.create.TblLiquibaseTest.xml::createtion-com.a**s.c**t.AppTest.LiquibaseTest::AndyLi
CREATE TABLE TblLiquibaseTest (testId bigint NOT NULL, testName varchar(50), createDate datetime, status char(1), CONSTRAINT PK_TBLLIQUIBASETEST PRIMARY KEY (testId))
GO

INSERT INTO DATABASECHANGELOG (ID, AUTHOR, FILENAME, DATEEXECUTED, ORDEREXECUTED, MD5SUM, DESCRIPTION, COMMENTS, EXECTYPE, CONTEXTS, LABELS, LIQUIBASE, DEPLOYMENT_ID) VALUES ('createtion-com.ai**s.c**t.AppTest.LiquibaseTest', 'AndyLi', 'com/a**s/c**st/p*m/*m/infrastructure/persistence/db.changelog.create.TblLiquibaseTest.xml', GETDATE(), 77, '8:166d6aa5138bc6e4f47c51458761f0ad', 'createTable tableName=TblLiquibaseTest', '', 'EXECUTED', NULL, NULL, '3.6.1', '4407838779')
GO

-- Release Database Lock
UPDATE DATABASECHANGELOGLOCK SET LOCKED = 0, LOCKEDBY = NULL, LOCKGRANTED = NULL WHERE ID = 1
GO

Compaing the script with previous script , we found that a table creaton operation DDL SQL had generated as expected . We can apply the script to database after checking and approval

For executing flexibly , i can compose tow mavne profiles in pom.xml

<profiles>
    <profile>
        <id>local</id>
        <activation>
            <activeByDefault>true</activeByDefault>
        </activation>
        <properties>
            <liquibase.exec.goal>update</liquibase.exec.goal>
            <liquibase.exec.prompt>false</liquibase.exec.prompt>
            <liquibase.db.url>jdbc:oracle:thin:@host:1521:xe</liquibase.db.url>
            <liquibase.db.user>user</liquibase.db.user>
            <liquibase.db.password>password</liquibase.db.password>
        </properties>
    </profile>

    <profile>
        <id>uat</id>
        <properties>
            <liquibase.exec.goal>updateSQL</liquibase.exec.goal>
            <liquibase.exec.prompt>true</liquibase.exec.prompt>
            <liquibase.db.url>jdbc:oracle:thin:@host2:1521:xe</liquibase.db.url>
            <liquibase.db.user>user2</liquibase.db.user>
            <liquibase.db.password>password2</liquibase.db.password>
        </properties>
    </profile>
</profiles>

And update the plugin to like below,


<plugin>
    <groupId>org.liquibase</groupId>
    <artifactId>liquibase-maven-plugin</artifactId>
    <version>3.0.5</version>
    <configuration>
        <changeLogFile>src/main/resources/db/liquibase_changeset.xml</changeLogFile>
        <driver>oracle.jdbc.driver.OracleDriver</driver>
        <url>${liquibase.db.url}</url>
        <username>${liquibase.db.user}</username>
        <password>${liquibase.db.password}</password>
        <promptOnNonLocalDatabase>false</promptOnNonLocalDatabase>
    </configuration>
    <executions>
        <execution>
            <phase>process-resources</phase>
            <goals>
                <goal>${liquibase.exec.goal}</goal>
            </goals>
        </execution>
    </executions>
</plugin>

After above , we can use mvn insatll -P local or mvn install -P uat in difference envrionment

load data by csv

We can use liquibase for loading data into database. First , create a database change log named as db.changelog.insert.TblLiquibaseTest.xml , and place into the same directory as db.changelog.create.TblLiquibaseTest.xml , and the content is below.


<?xml version="1.0" encoding="UTF-8"?>
<databaseChangeLog
        xmlns="http://www.liquibase.org/xml/ns/dbchangelog"
        xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
        xsi:schemaLocation="http://www.liquibase.org/xml/ns/dbchangelog
         http://www.liquibase.org/xml/ns/dbchangelog/dbchangelog-3.1.xsd">

    <changeSet id="insertdata-com.a**s.c**t.AppTest.LiquibaseTest" author="AndyLi">
        <loadUpdateData tableName="TblLiquibaseTest" primaryKey="testId" file="om/a**ss/c**st/p*m/*m/infrastructure/persistence/TblLiquibaseTest.csv">
            <column type="NUMERIC" name="testId"></column>
            <column type="STRING" name="testName"></column>
            <column name="createDate" type="DATE"></column>
            <column type="STRING" name="status"></column>
        </loadUpdateData>

    </changeSet>

</databaseChangeLog>

Second , create a csv named as TblLiquibaseTest.csv , and place into the same directory as db.changelog.insert.TblLiquibaseTest.xml , and composed data into TblLiquibaseTest.csv

testId,testName,createDate,status
1,name-1,2018-08-16,A
2,name-2,2018-08-16,A
3,name-3,2018-08-16,A

Third , add the db.changelog.insert.TblLiquibaseTest.xml file path into db.changelog.TblLiquibaseTest.xml , let liquibase can locate the database change log

<?xml version="1.0" encoding="UTF-8"?>
<databaseChangeLog
        xmlns="http://www.liquibase.org/xml/ns/dbchangelog"
        xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
        xsi:schemaLocation="http://www.liquibase.org/xml/ns/dbchangelog
         http://www.liquibase.org/xml/ns/dbchangelog/dbchangelog-3.1.xsd">
    <include file="com/a**s/c**t/p**m/m**/infrastructure/persistence/db.changelog.create.TblLiquibaseTest.xml"/>
    <include file="com/a**s/**st/p*m/m*/infrastructure/persistence/db.changelog.insert.TblLiquibaseTest.xml"/>
</databaseChangeLog>

Fourth , run maven command to generate script mvn package , and execute the script in database to applies database change log


-- *********************************************************************
-- Update Database Script
-- *********************************************************************
-- Change Log: db.changelog_p**m_master.xml
-- Ran at: 8/16/18 7:14 PM
-- Against: sa@jdbc:sqlserver://CAN****43X:1433;authenticationScheme=nativeAuthentication;xopenStates=false;sendTimeAsDatetime=true;trustServerCertificate=false;sendStringParametersAsUnicode=true;selectMethod=direct;responseBuffering=adaptive;packetSize=8000;multiSubnetFailover=false;loginTimeout=15;lockTimeout=-1;lastUpdateCount=true;encrypt=false;disableStatementPooling=true;databaseName=C**TPOC;applicationName=Microsoft JDBC Driver for SQL Server;applicationIntent=readwrite;
-- Liquibase version: 3.6.1
-- *********************************************************************

USE C**TPOC;
GO

-- Lock Database
UPDATE DATABASECHANGELOGLOCK SET LOCKED = 1, LOCKEDBY = 'CA***43X (10.65.35.100)', LOCKGRANTED = '2018-08-16T19:14:16.857' WHERE ID = 1 AND LOCKED = 0
GO

-- Changeset com/ai**s/c**t/p**m/**m/infrastructure/persistence/db.changelog.create.TblLiquibaseTest.xml::createtion-com.a**s.c**st.AppTest.LiquibaseTest::AndyLi
CREATE TABLE TblLiquibaseTest (testId bigint NOT NULL, testName varchar(50), createDate datetime, status char(1), CONSTRAINT PK_TBLLIQUIBASETEST PRIMARY KEY (testId))
GO

INSERT INTO DATABASECHANGELOG (ID, AUTHOR, FILENAME, DATEEXECUTED, ORDEREXECUTED, MD5SUM, DESCRIPTION, COMMENTS, EXECTYPE, CONTEXTS, LABELS, LIQUIBASE, DEPLOYMENT_ID) VALUES ('createtion-com.ai**s.c**st.AppTest.LiquibaseTest', 'AndyLi', 'com/a**ss/c**t/p**m/**m/infrastructure/persistence/db.changelog.create.TblLiquibaseTest.xml', GETDATE(), 77, '8:166d6aa5138bc6e4f47c51458761f0ad', 'createTable tableName=TblLiquibaseTest', '', 'EXECUTED', NULL, NULL, '3.6.1', '4418057268')
GO

-- Changeset com/a**s/c**st/p**m/**m/infrastructure/persistence/db.changelog.insert.TblLiquibaseTest.xml::insertdata-com.a**ss.c**st.AppTest.LiquibaseTest::AndyLi
-- WARNING The following SQL may change each run and therefore is possibly incorrect and/or invalid:
DECLARE @reccount integer
SELECT @reccount = count(*) FROM TblLiquibaseTest WHERE testId = 1
IF @reccount = 0
BEGIN
INSERT INTO TblLiquibaseTest (testId, testName, createDate, status) VALUES (1, 'name-1', '2018-08-16', 'A');
END
ELSE
BEGIN
UPDATE TblLiquibaseTest SET createDate = '2018-08-16', status = 'A', testName = 'name-1' WHERE testId = 1;
END
GO

DECLARE @reccount integer
SELECT @reccount = count(*) FROM TblLiquibaseTest WHERE testId = 2
IF @reccount = 0
BEGIN
INSERT INTO TblLiquibaseTest (testId, testName, createDate, status) VALUES (2, 'name-2', '2018-08-16', 'A');
END
ELSE
BEGIN
UPDATE TblLiquibaseTest SET createDate = '2018-08-16', status = 'A', testName = 'name-2' WHERE testId = 2;
END
GO

DECLARE @reccount integer
SELECT @reccount = count(*) FROM TblLiquibaseTest WHERE testId = 3
IF @reccount = 0
BEGIN
INSERT INTO TblLiquibaseTest (testId, testName, createDate, status) VALUES (3, 'name-3', '2018-08-16', 'A');
END
ELSE
BEGIN
UPDATE TblLiquibaseTest SET createDate = '2018-08-16', status = 'A', testName = 'name-3' WHERE testId = 3;
END
GO

INSERT INTO DATABASECHANGELOG (ID, AUTHOR, FILENAME, DATEEXECUTED, ORDEREXECUTED, MD5SUM, DESCRIPTION, COMMENTS, EXECTYPE, CONTEXTS, LABELS, LIQUIBASE, DEPLOYMENT_ID) VALUES ('insertdata-com.a**tss.c**st.AppTest.LiquibaseTest', 'AndyLi', 'com/a**tss/c**st/p**m/m**/infrastructure/persistence/db.changelog.insert.TblLiquibaseTest.xml', GETDATE(), 78, '8:5c6743a4503734b3763b0ef1330edccd', 'loadUpdateData tableName=TblLiquibaseTest', '', 'EXECUTED', NULL, NULL, '3.6.1', '4418057268')
GO

-- Release Database Lock
UPDATE DATABASECHANGELOGLOCK SET LOCKED = 0, LOCKEDBY = NULL, LOCKGRANTED = NULL WHERE ID = 1
GO
