spring batch in practice

table of content

• summary of meta-data table
• summary of spring batch architecture
• creation of parallel batch job
  • thread pool
• creation of synchronous batch job
• job status
  • job success
  • job fail
• scheduling task
• transaction
• re-run strategy
• distributed deployment
• example with spring boot

summary of meta-data table

Meta-Data table design details refer to : spring docs spring docs

Use above link to find and digging into spring batch data module in database . In here , this article ,we will only summarize something must be aware for developer .

1. The initial DDL scripts placed in the packages : org.springfreamework.batch.core of spring-batch-core.xx.jar
2. The spring batch configuration file reside in spring-batch-core.xx.jar named as : batch-xx.properties . you can change the configuration optional according to this file optional
3. optimistic locking stategy

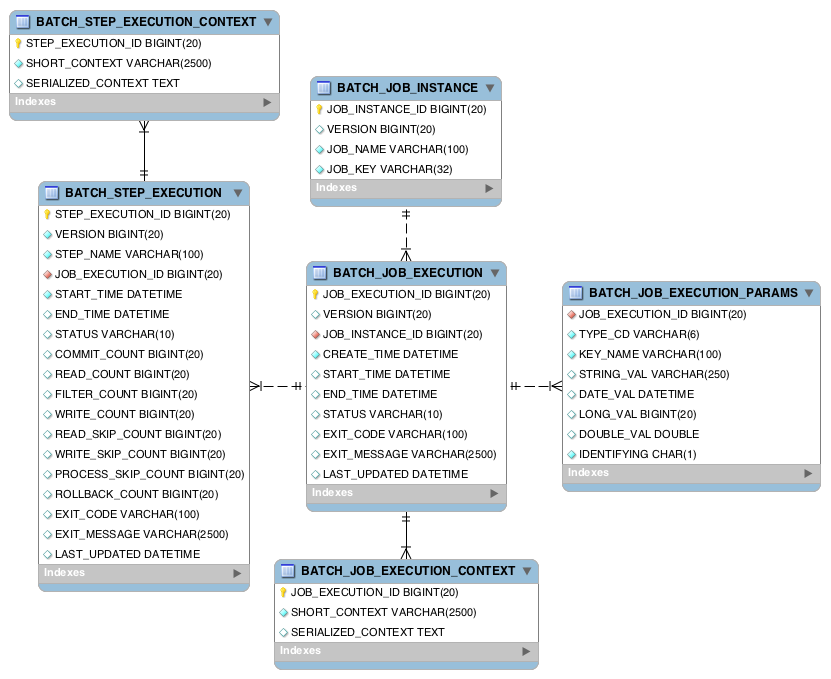

4. table structure below

the primary table are : batch_job_instance , batch_job_execution , batch_setp_excution make up the overall hierarchy of spring batch data module .

summary of architecture

refer to : spring batch docs Use this link for find and digging into design architecture of spring batch , in this sections , will walk you through the summary of spring batch .

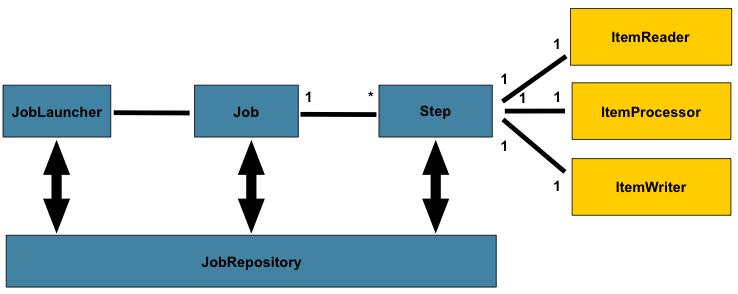

The following diagram for overall hierarchy

creation of parallel batch job

Go and find the details of parallel job

example with spring boot

This example demonstrate how to upload data into database from excel .

First , configure spring to enable batch processing

@Configuration
@EnableBatchProcessing
@EnableScheduling
public class BatchConfiguration

1. @EnableBatchProcessing annotation on class to enable batch job
2. @EnableScheduling enable spring schedule component to schedule our batch job , beside launch batch job by web application online

beside above configuration , in application.properties , batch job global configuration are needed

spring.batch.table-prefix=BATCH_
spring.batch.initialize-schema=always
spring.batch.job.enabled=false

In addition , we should also enable spring transaction management for batch job transaction.

@SpringBootApplication(scanBasePackages = {"com.a**s.c**t"})
@EnableCaching
@EnableTransactionManagement
public class StarterWithSpringBoot {

Now , let to configure JobLauncher TaskExeuctor JobRepository Scheduled in BatchConfiguration class for global configuration.

Using JobLauncher to launcher our batch job

@Bean
public JobLauncher jobLauncher(JobRepository jobRepository,TaskExecutor taskExecutor) {
    SimpleJobLauncher jobLauncher = new SimpleJobLauncher();
    jobLauncher.setTaskExecutor(taskExecutor);
    jobLauncher.setJobRepository(jobRepository);
    return jobLauncher;
}

1. TaskExecutor we using ThreadPoolTaskExecutor implements of TaskExecutor for parallelism batch job executions

@Bean
public TaskExecutor taskExecutor() {
    ThreadPoolTaskExecutor taskExecutor = new ThreadPoolTaskExecutor();
   taskExecutor.setCorePoolSize(10);
   taskExecutor.setMaxPoolSize(50);
   taskExecutor.setThreadNamePrefix("***-business");
   taskExecutor.initialize();
   return taskExecutor;
}

1. JobRepository database repository for batch persisence

 @Bean
public JobRepository jobRepository(DataSource dataSource, PlatformTransactionManager transactionManager) throws Exception {
    JobRepositoryFactoryBean factoryBean  = new JobRepositoryFactoryBean();
    factoryBean.setDataSource(dataSource);
    factoryBean.setTransactionManager(transactionManager);

    JobRepository jobRepository =  factoryBean.getObject();
    return  jobRepository;
}

We can use spring scheduler component to schedule batch job , for example,

@Scheduled(cron = "*/5 * * * * ?")
public void medicalCardDayEndTask() {
    // logger.info("*******************spring batch scheduler running ***************");
}

Throughout About step ,global configuration complete , follow by job configuration

second , job configuration

Create a component JobConfiguration for job configuration

@Component
public class UploadFileJob

create a job in JobConfiguration

@Autowired
private JobBuilderFactory jobBuilderFactory;
@Autowired
private JobCompletionNotificationListener jobCompletionNotificationListener;

 public void createUploadFileJob(String path) throws JobParametersInvalidException, JobExecutionAlreadyRunningException, JobRestartException, JobInstanceAlreadyCompleteException {
        Job job = jobBuilderFactory.get("UploadJob")
                .incrementer(new RunIdIncrementer())
                .listener(jobCompletionNotificationListener)
                .flow(uploadStep(path))
                .next(dataSqlValidationStep())
                .end()
                .build();

        runJob(job);
 }

1. JobBuilderFactory privoded by Spring Batch , be used to build a job
2. JobCompletionNotificationListener a implements of JobExecutionListenerSupport , listen to job exeuction events , like completed , failed and so on.

@Component
public class JobCompletionNotificationListener extends JobExecutionListenerSupport {

    @Override
    public void afterJob(JobExecution jobExecution) {
        if (jobExecution.getStatus() == BatchStatus.COMPLETED) {
            JobParameters jobParameters = jobExecution.getJobParameters();
            Date time = jobParameters.getDate("time");
            logger.info("************ time:take time:{}MS;start time:{}********", System.currentTimeMillis() - time.getTime(),time );
        } else if (jobExecution.getStatus() == BatchStatus.FAILED) {

        }
    }

    @Override
    public void beforeJob(JobExecution jobExecution) {
        super.beforeJob(jobExecution);
    }
}

1. uploadStep(path) a method to create a step to upload data into database from excel .

@Autowired
private StreamerItemReaderBuilder streamerItemReaderBuilder ;
@Autowired
private FileUploadProcessor FileUploadProcessor;
@Autowired
FileUploadWriter<FileUploadPo> writer;
@Autowired
ExcelDataSupplementListener excelDataSupplementListener;
@Autowired
FileUploadValidatorListener FileUploadValidatorListener;
@Autowired
ValidationErrorEventListener errorEventListener;
private Step fileUploadStep(String path) {
        return stepBuilderFactory.get("uploadFileStep1")
                .<FileUploadExcel, FileUploadPo> chunk(1000)
                .reader(streamerItemReaderBuilder.reader(path))
                .processor(FileUploadProcessor)
                .writer(writer)
                .listener(excelDataSupplementListener)
                .listener(FileUploadValidatorListener)
                .listener(errorEventListener)
                .build();
}

• FileUploadExcel java bean used by ItemReader for extract data from excel , one field in java bean take responsibility for one column in excel.
• FileUploadPo a persistence object used by repository to store data into database
• StreamerItemReaderBuilder using to build a ItemReader

   @Component
   public class StreamerItemReaderBuilder {

    public StreamerItemReader<FileUploadExcel> build(String path) {
        StreamerItemReader<FileUploadExcel> reader = new StreamerItemReader<FileUploadExcel>();
        reader.setResource(new FileSystemResource(path));
        reader.setLinesToSkip(2);
        reader.setMaxNumberOfSheets(0);

        reader.setRowMapper(rowMapper());

        DefaultRowSetFactory rowSetFactory = new DefaultRowSetFactory();
        RowNumberColumnNameExtractor columnNameExtractor = new RowNumberColumnNameExtractor();
        columnNameExtractor.setRowNumberOfColumnNames(1);

        rowSetFactory.setColumnNameExtractor(columnNameExtractor);
        reader.setRowSetFactory(rowSetFactory);

        return reader;
    }

    private RowMapper<FileUploadExcel> rowMapper() {
        BeanWrapperRowMapper<FileUploadExcel> rowMapper = new BeanWrapperRowMapper<FileUploadExcel>();
        rowMapper.setDistanceLimit(1);
        rowMapper.setStrict(false);
        rowMapper.setTargetType(FileUploadExcel.class);

        ColumnGroup products = new ColumnGroup("products");
        policyProducts.addColumnName("pl**o", "cover*ode", "status", "propo*A", "ne*mt");
        rowMapper.addColumnGroup(products);
        return rowMapper;
    }
}

• FileUploadProcessor using for data transform from FileUploadExcel to FileUploadPo for persistence

@Component
public class FileUploadProcessor implements ItemProcessor<FileUploadExcel,FileUploadPo> {
    @Override
    public FileUploadPo process(FileUploadExcel fileUploadExcel) throws Exception {
        FileUploadPo po = new FileUploadPo();
        IBeanUtils.copyProperties(fileUploadExcel,po);
        return po;
    }
}

• writer is a instance of FileUploadWriter<FileUploadPo> that is implments of ItemWriter be using for data persistence

@Component
public class FileUploadWriter<T> implements ItemWriter<FileUploadPo> {
    @Autowired
    FileUploadDataPoRepository repository;
    @Override
    public void write(List<? extends FileUploadPo > items) throws Exception {
        logger.info("upload writer:{}",items);
        long time = System.currentTimeMillis();
        repository.saveAll(items);
        logger.info("using time:{}",System.currentTimeMillis() - time);
    }
}

• excelDataSupplementListener is a instance of job event listener be used to supplement data after read before process.

@Component
public class ExcelDataSupplementListener {
    static final SimpleDateFormat  DATE_FORMAT =new SimpleDateFormat("MM-dd-yyyy");
    @AfterRead
    public void supplement(FileUploadExcel excel) {
        if (excel.getDate() != null) {
            Date date = new Date();
            date.setTime(Long.valueOf(excel.getDate()));
            excel.setDate(DATE_FORMAT.format(date));
        }
    }

}

• FileUploadValidatorListener is a instance of job event listener be used to validate data before process

@Component
public class FileUploadValidatorListener {
    @Autowired
    ApplicationContext applicationContext;

    @BeforeProcess
    public void verify(FileUploadExcel excelBean) {
        doVerify(new ClientValidator(excelBean));

        doVerify(new DateValidator(excelBean));
    }

    private void doVerify(Validator validator) {
        if (!validator.verify())
            handleErrorMessage(validator);
    }
    private void handleErrorMessage(Validator validator) {
        ValidationErrorMessageEvent event = new ValidationErrorMessageEvent(this, validator.getErrorMessage());
        applicationContext.publishEvent(event);
    }
}

• applicationContext used to publish a validation error event when validation error
• ValidationErrorMessageEvent a validation error even implemented ApplicationEvent within spring

public class ValidationErrorMessageEvent extends ApplicationEvent {
    List<ValidationMessageOfFileUpload> errorMessage = new LinkedList<>();

    public List<ValidationMessageOfFileUpload> getErrorMessage() {
        return errorMessage;
    }
    /**
     * Create a new ApplicationEvent.
     *
     * @param source the object on which the event initially occurred (never {@code null})
     */
    public ValidationErrorMessageEvent(Object source,List<ValidationMessageOfFileUpload> errorMessage) {
        super(source);
        this.errorMessage = errorMessage;
    }
}

• ValidationMessageOfFileUpload a java bean for erorr message
• ValidationErrorEventListener this event listener will listen to ValidationErrorMessageEvent aways

@Component
@Slf4j
public class ValidationErrorEventListener {

    List<ValidationMessageOfFileUpload> errorMessages = new LinkedList<>();

    @Autowired
    FileUploadErrorMessagePoRepository repository;

    @EventListener(classes = ValidationErrorMessageEvent.class)
    public void handleErrorMessage(MfuValidationErrorMessageEvent event) {
        errorMessages.addAll(event.getErrorMessage());
        if (errorMessages.size() >= 1000) {
            log.info("handle error message,the number of error message is :{}", errorMessages.size());
            persist(errorMessages);
            errorMessages.clear();
        }
    }

    private void persist(List<ValidationMessageOfFileUpload> errorMessages) {
        List<FileUploadErrorMessagePo> pos = errorMessages.stream().map(error -> createPo(error)).collect(Collectors.toList());
        repository.saveAll(pos);
    }

    private FileUploadErrorMessagePo createPo(ValidationMessageOfFileUpload error) {
        FileUploadErrorMessagePo po = new FileUploadErrorMessagePo();
        po.setRowNumber(error.getRowNumber());
        po.setMessage(error.getMessage());
        //TODO other property should be supplemented
        return po;
    }

    @AfterStep
    public void handleErrorMessageLastBatch(StepExecution stepExecution) {
        if (errorMessages.size() > 0) {
            log.info("handle  file upload error message last batch ,the number of last batch is {}:", errorMessages.size());
            persist(errorMessages);
            errorMessages.clear();
        }
    }
}

• @AfterStep on method handleErrorMessageLastBatch to listen to the job event , so that system can handle last batch error message to persist .

1. dataSqlValidationStep() create validaton setp

   @Autowired
   SqlValidatorReaderBuilder sqlValidatorReaderBuilder;

   @Autowired
   SqlValidatorProcessor sqlValidatorProcessor;

   @Autowired
   SqlValidatorWriter sqlValidatorWriter;

   private Step dataSqlValidationStep() {
        return stepBuilderFactory.get("dataSqlValidationStep")
                .<SqlValidator,SqlValidator>chunk(1)
                .reader(sqlValidatorReaderBuilder.build())
                .processor(sqlValidatorProcessor)
                .writer(sqlValidatorWriter)
                .build();
   }

• sqlValidatorReaderBuilder build a ItemReader to read item like this

@Component
public class SqlValidatorReaderBuilder {

    @Autowired
    ApplicationContext context;

    public ListItemReader<SqlValidator> build() {
        Map<String, SqlValidator> validators  = context.getBeansOfType(SqlValidator.class);
        ListItemReader<SqlValidator> reader = new ListItemReader<>(validators.values().stream().collect(Collectors.toList()));
        return reader;
    }
}

• sqlValidatorProcessor a validation processor like below,

@Component
public class SqlValidatorProcessor implements ItemProcessor<SqlValidator, SqlValidator> {
    @Autowired
    ApplicationContext context;
    @Override
    public SqlValidator process(SqlValidator item) throws Exception {
        if (item != null) {
            item.verify();
        }
        return item;
    }
}

• sqlValidatorWriter a writer to persist data

@Component
public class SqlValidatorWriter implements ItemWriter<SqlValidator> {
    @Autowired
    UploadDataPoRepository repository;
    @Override
    public void write(List<? extends SqlValidator> items) throws Exception {

    }
}

1. spring JPA batch insert configuration

Configure batch insert in application.properties

hibernate.jdbc.batch_size=1000
hibernate.order_inserts=true
hibernate.order_updates=true
hibernate.jdbc.batch_versioned_data=true
spring.jpa.hibernate.jdbc.batch_size=1000
spring.jpa.hibernate.order_inserts=true
spring.jpa.hibernate.order_updates=true
spring.jpa.hibernate.jdbc.batch_versioned_data=true
spring.jpa.properties.hibernate.jdbc.batch_size=1000
spring.jpa.properties.hibernate.order_inserts=true
spring.jpa.properties.hibernate.order_updates=true
spring.jpa.properties.hibernate.jdbc.batch_versioned_data=true

Throughout above step by step , we build up a spring batch example. and walked you through the process of batch job
